Free “NIST (ANSI/NIST-ITL 1-2000) viewer” for Windows 32-bit (version 5.0)

and

“NIST (ANSI/NIST-ITL 1-2000) editor” for Windows 32-bit (version 5.0)



Cognaxon “NIST (ANSI/NIST-ITL 1-2000) viewer” reads and extracts ANSI/NIST-ITL 1-2000 and ANSI/NIST-ITL 1-2007 file formats.

ANSI/NIST-ITL 1-2000 and ANSI/NIST-ITL 1-2007 are Data Formats for the Interchange of Fingerprint, Facial, & Scar Mark & Tattoo (SMT) Information defined by American National Standard for Information Systems.

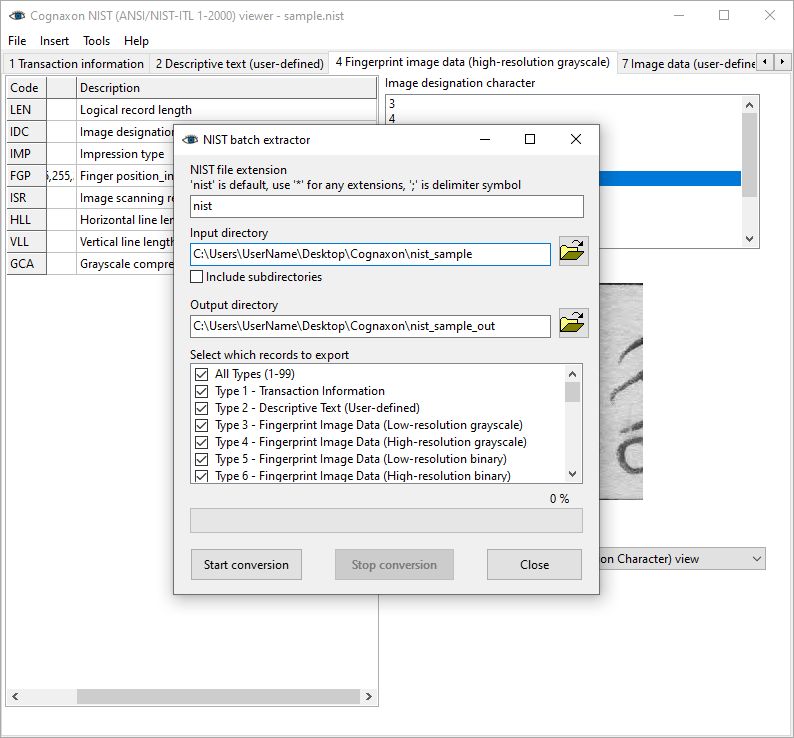

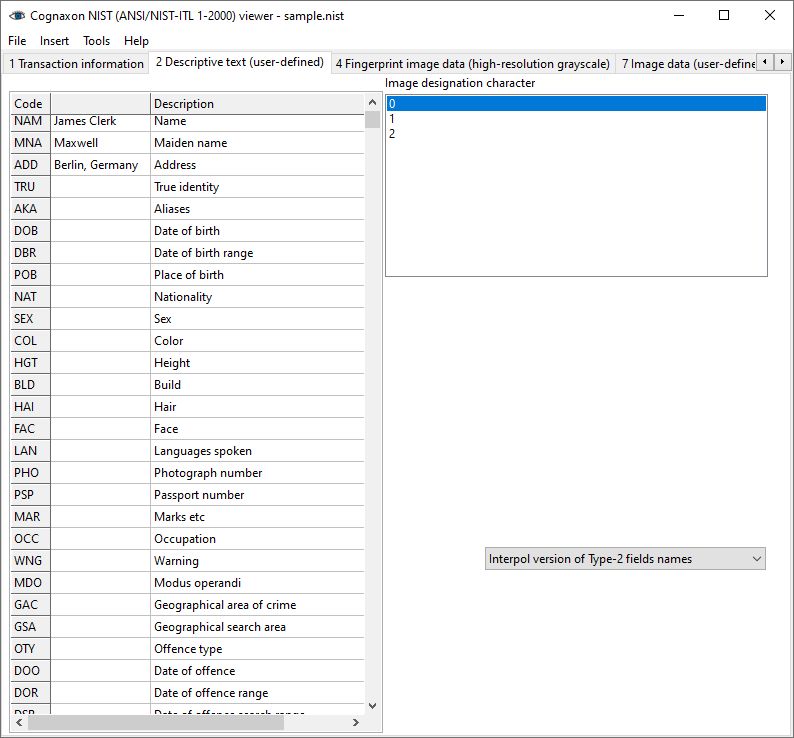

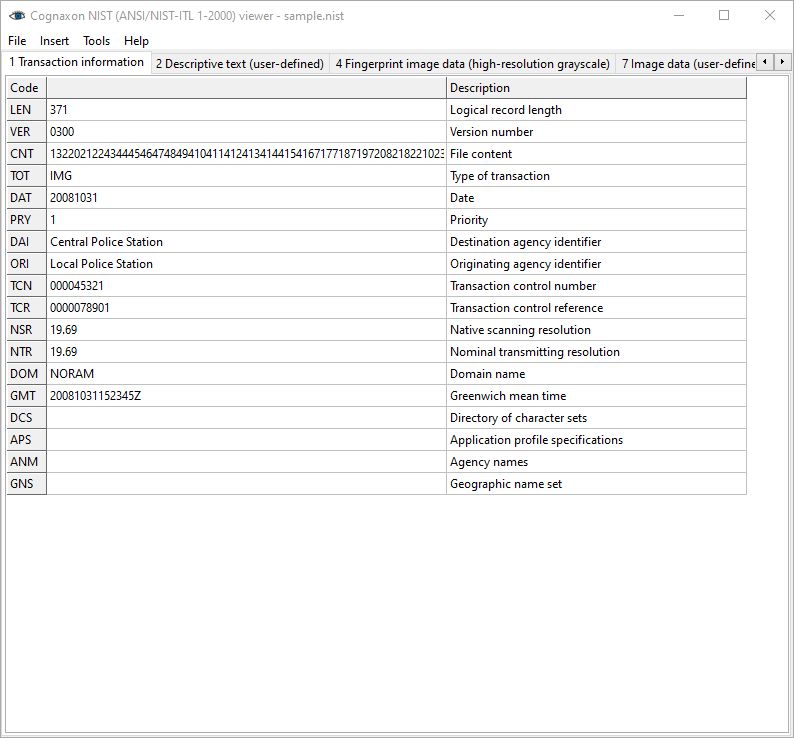

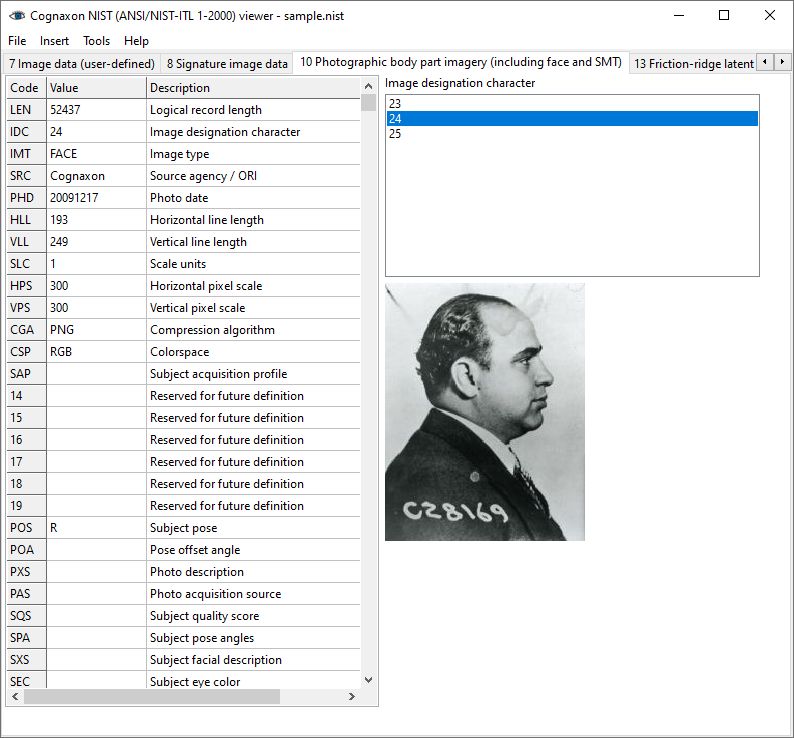

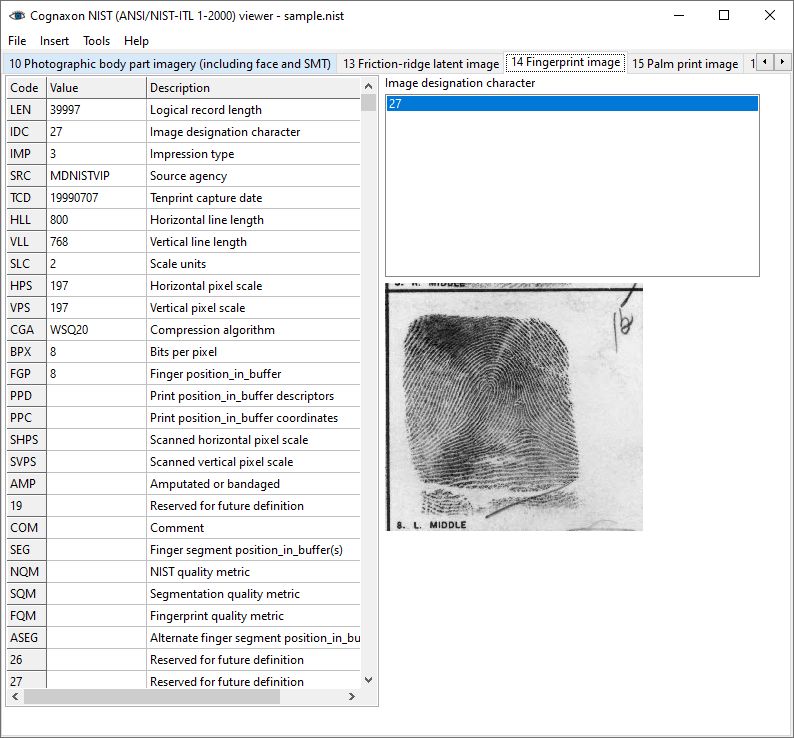

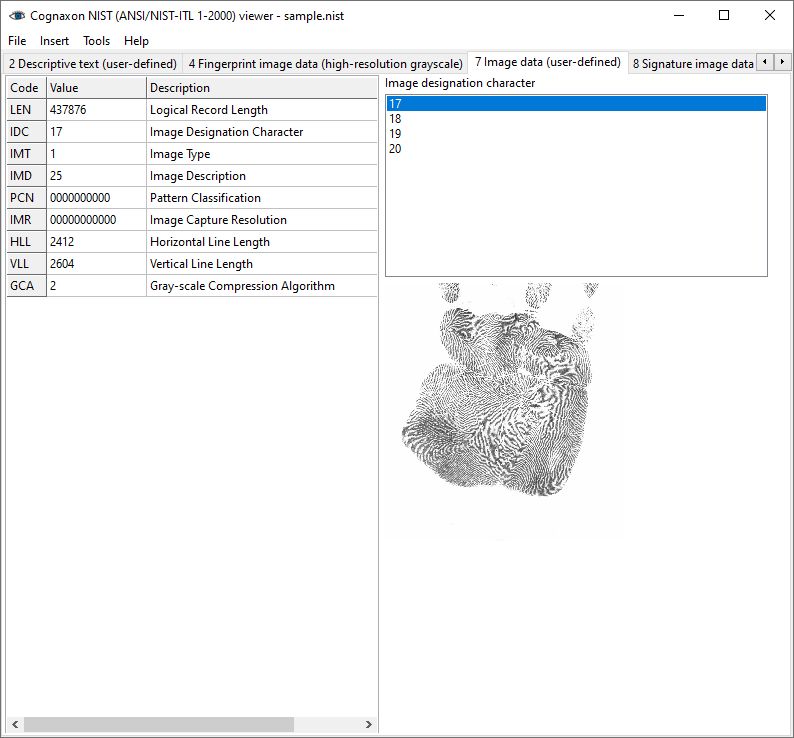

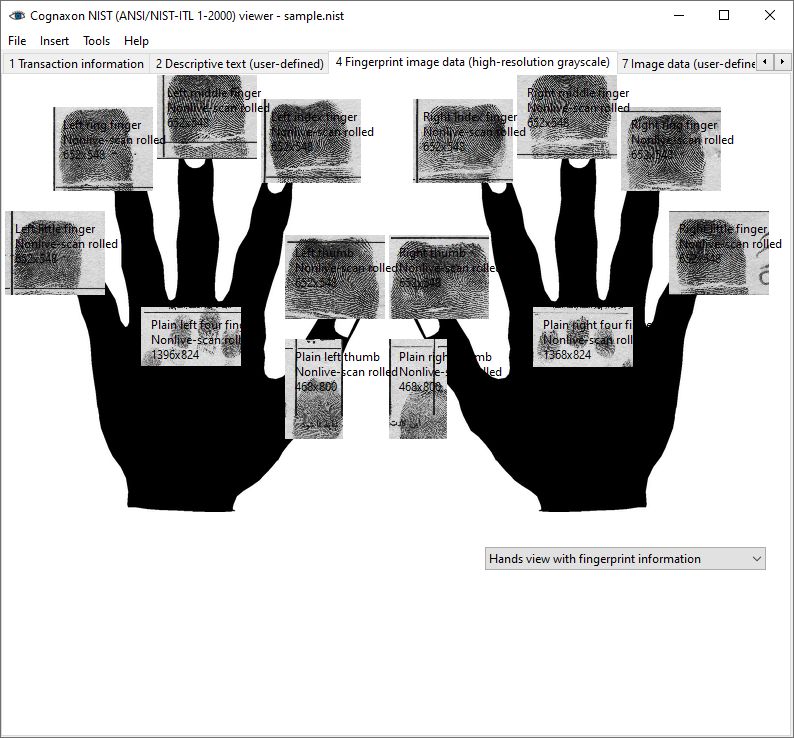

Figure 1 Screenshot of Cognaxon “NIST (ANSI/NIST-ITL 1-2000) viewer” main window Figure 2 Screenshot of Cognaxon “NIST (ANSI/NIST-ITL 1-2000) viewer” NIST batch extractor utility window


“NIST (ANSI/NIST-ITL 1-2000) viewer” is small (approx. 5 Megabytes) and fast, has inside integrated “WSQ viewer”. After installation of “NIST (ANSI/NIST-ITL 1-2000) viewer” *.nist files can be easily opened in Windows Explorer with simple mouse double click.

“NIST (ANSI/NIST-ITL 1-2000) viewer” is the demo version of “NIST (ANSI/NIST-ITL 1-2000)” library add-on available as SDK for software developers.

“ANSI/NIST-ITL 1-2000 viewer” is absolutely free for viewing files.

If you would like to be able to edit and save "ANSI/NIST-ITL 1-2000" files then you need to purchase the license.

After registration “ANSI/NIST-ITL 1-2000 viewer” becomes fully functional “ANSI/NIST-ITL 1-2000 editor” which is able to edit and save nist files.

“NIST (ANSI/NIST-ITL 1-2000) editor” costs 253.00 U.S. dollars for one license. One(1) license means one(1) computer.

To order “NIST (ANSI/NIST-ITL 1-2000) editor” please click here.



Download

Click here to download the latest version of Cognaxon free “NIST (ANSI/NIST-ITL 1-2000) viewer” for Windows:

“NIST (ANSI/NIST-ITL 1-2000) viewer” (for Windows)


Android version of “NIST (ANSI/NIST-ITL 1-2000) viewer” is available on Google Play, on Amazon Appstore and on Samsung Galaxy Store.




“NIST (ANSI/NIST-ITL 1-2000) viewer” (for Windows) specifications

Table 1 Supported logical records

Logical
record
identifier
Logical record contents Type of data
1Transaction InformationASCII
2Descriptive Text (User-defined)ASCII
3Fingerprint Image Data (Low-resolution grayscale)Binary
4Fingerprint Image Data (High-resolution grayscale)Binary
5Fingerprint Image Data (Low-resolution binary)Binary
6Fingerprint Image Data (High-resolution binary)Binary
7Image Data (User-defined)Binary
8Signature Image DataBinary
9Minutiae DataASCII
10Facial & SMT Image DataASCII/Binary
13Latent Image Data (Variable-resolution)ASCII/Binary
14Tenprint fingerprint Impressions (Variable-resolution)ASCII/Binary
15Palmprint Image Data (Variable-resolution)ASCII/Binary
16User-defined Testing Image Data (Variable-resolution)ASCII/Binary
17Iris image record (ANSI/NIST-ITL 1-2007)ASCII/Binary
99CBEFF biometric data record (ANSI/NIST-ITL 1-2007)ASCII/Binary

Table 2 Supported grayscale and color image decompression

Algorithm name Binary code
(in base 10)
ASCII code
Uncompressed0NONE
WSQ Version 2.01WSQ20
JPEG ISO/IEC 10918 (Lossy)2JPEGB
JPEG ISO/IEC 10918 (Lossless)3JPEGL
JPEG 2000 ISO/IEC 15444-1 (Lossy)4JP2
JPEG 2000 ISO/IEC 15444-1 (Lossless)5JP2L
Portable Network Graphics6PNG

Table 3 Supported binary image decompression

Algorithm name Binary code
(in base 10)
Uncompressed0
Facsimile ANSI/EIA 538-1988
(TIFF CCITT Group 4)
1




ANSI/NIST-ITL 1-2000 format description

ANSI/NIST-ITL 1-2000 standard defines the content, format, and units of measurement for the exchange of fingerprint, palmprint, facial/mugshot, and scar, mark, & tattoo (SMT) image information that may be used in the identification process of a subject. The information consists of a variety of mandatory and optional items, including scanning parameters, related descriptive and record data, digitized fingerprint information, and compressed or uncompressed images. This information is intended for interchange among criminal justice administrations or organizations that rely on automated fingerprint and palmprint identification systems or use facial/mugshot or SMT data for identification purposes. This standard does not define the characteristics of the software that shall be required to format the textual information or to compress and assemble the associated digital fingerprint image information. Typical applications for this software might include, but are not limited to, computer systems associated with a live-scan fingerprinting system, a workstation that is connected to or is part of an Automated Fingerprint Identification System (AFIS), or an Image Storage and Retrieval system containing fingerprints, facial/mugshot, or SMT images.

Information compiled and formatted in accordance with this standard can be recorded on machine-readable media or may be transmitted by data communication facilities in lieu of a finger print card, a latent fingerprint, facial/mugshot, or other types of photographs. Law enforcement and criminal justice agencies will use the standard to exchange fingerprint, palmprint, or other photographic images and related identification data.

Systems claiming conformance with this standard shall implement the transmitting and/or receiving of record types as defined by this standard. Systems claiming conformance are not required to implement every record type specified herein. At a minimum, they must be capable of transmitting and receiving Type-1 records. However, for a transaction to be meaningful, there must be at least one additional type of record included. The implementor must document the record types supported in terms of transmitting and/or receiving. Those record types not implemented shall be ignored by the conforming system.

Table 4 ANSI/NIST-ITL 1-2000 file format specifications (Logical record types)

Logical
record
identifier
Logical record contents Type of data
1Transaction InformationASCII
2Descriptive Text (User-defined)ASCII
3Fingerprint Image Data (Low-resolution grayscale)Binary
4Fingerprint Image Data (High-resolution grayscale)Binary
5Fingerprint Image Data (Low-resolution binary)Binary
6Fingerprint Image Data (High-resolution binary)Binary
7Image Data (User-defined)Binary
8Signature Image DataBinary
9Minutiae DataASCII
10Facial & SMT Image DataASCII/Binary
11Reserved for Future Use-
12Reserved for Future Use-
13Latent Image Data (Variable-resolution)ASCII/Binary
14Tenprint fingerprint Impressions (Variable-resolution)ASCII/Binary
15Palmprint Image Data (Variable-resolution)ASCII/Binary
16User-defined Testing Image Data (Variable-resolution)ASCII/Binary
17Iris image record (ANSI/NIST-ITL 1-2007)ASCII/Binary
18-98Reserved for future useASCII/Binary
99CBEFF biometric data record (ANSI/NIST-ITL 1-2007)ASCII/Binary
